JIS F7398 Marine self closing drain valve U type And F type IMPA758501 IMPA758502 IMPA758503 IMPA758504

China Marine Bronze Fuel Oil Tank Self-Closing Drain Valve JIS F7398U 5K:

MARINE F7398 OIL TANK SELF-CLOSING DRAIN VALVE U TYPE

IMPA758501 5k15

IMPA758502 5k20

IMPA758503 5k32

IMPA758504 5k40

IMPA758505 5k50

Max@greatmarinevalve.com

Marine Bronze Fuel Oil Tank Self Closing Drain Valve is spring loaded drain valve.

Design Standard: JIS F7398-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-0.15Mpa, Seal-0.11Mpa

Flange size as per JIS B2220 - 5K

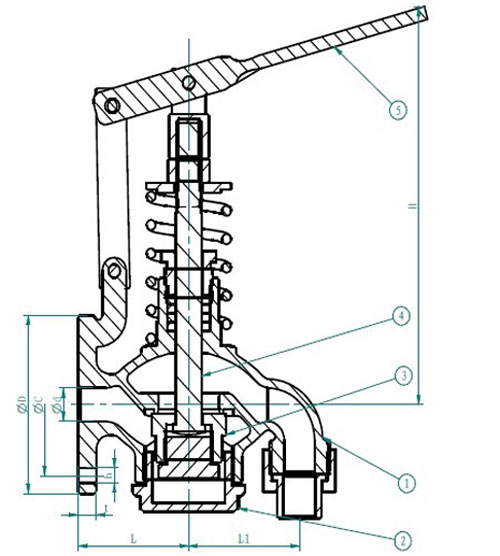

Main Material:

1.Body: Bronze (BC6)

2.Bonnet: Bronze (BC6)

3.Disc: Bronze (BC6)

4.Stem: Brass (C3771BD)

5.Lever: SS400

6.Gasket: non-asbestos

Main Size List(mm):

DN	d	L	L1	D	C	NO.	h	t	H
5K15U	15	55	55	80	60	4	12	9	179
5K20U	20	65	65	85	65	4	12	10	187
5K25U	25	65	65	95	75	4	12	10	187
5K40U	40	90	100	120	95	4	15	12	229
5K50U	50	115	130	130	105	4	15	14	252
5K65U	65	135	155	155	130	4	15	14	252

The description/sizes may be different with goods, please check with us when order.
